JRready ST9028 4Pin 4Sets Deutsch Connector Kit-DT Connector with 16AWG GXL Automotive Wire-Includes Heat Shrink Butt Connector-Ideal for Auto Wire Connection in Cars,Trucks Etc

About this item

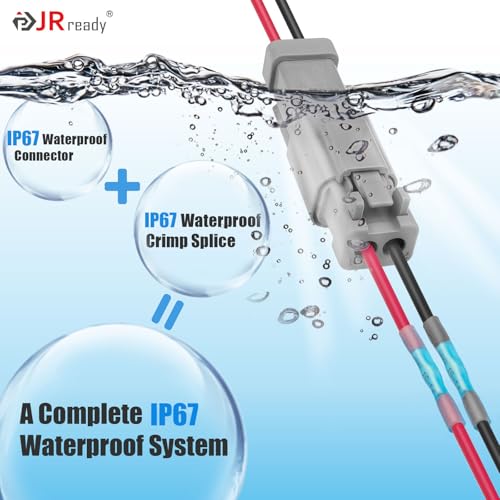

• Complete IP67 Protection System: A sealed DT plug & socket (DT04-4P / DT06-4S) plus adhesive-lined heat-shrink butt connectors create end-to-end IP67 sealing when mated and fully recovered, no “half-waterproof” weak points, blocking dust and resisting temporary immersion (1 m/30 min).

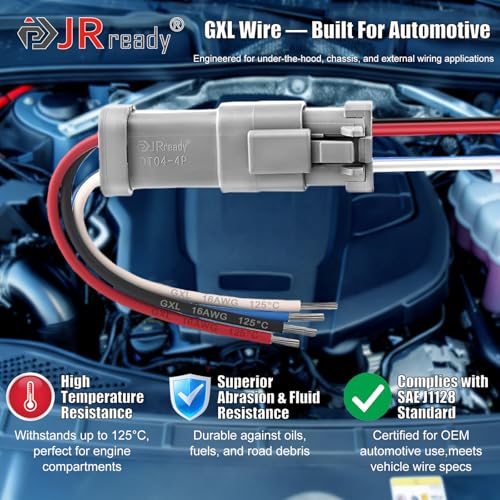

• GXL 16AWG Automotive Wire (SAE J1128): Thin-wall XLPE insulation handles -40 to +125°C, resists oils/abrasion, and stays flexible for neat routing in harsh engine bays. Ideal for power and signal on vehicles and marine gear.
• Pre-Wired DT Pigtails Save Time: Male & female harnesses arrive pre-terminated for quick splices; pair the leads via the included heat-shrink butt splices and finish with heat for an airtight, strain-relieved joint.
• Built for Harsh Environments: DT series is engineered for commercial & industrial transportation-under-hood, chassis, and cab-offering durable thermoplastic housings, silicone seals, and secure wedge-locks.
• What You Get (4 Sets) – 4 × DT04-4P/16AWG pigtails + 4 × DT06-4S/16AWG pigtails + 32 × heat-shrink butt splices; backed by JRready expertise and support for harness builds and repairs.

Specifications
