Solar Extension Cable 10 Gauge Panels Wire 10Ft 10AWG (6mm²) PV Wire SJZSUNRUN Tinned Copper Wire with 2 Pairs Solar Connectors for Outdoor Automotive, Marine, (Black&Red)
Extra Savings Code
2XWY6SCXDiscount applies at checkout — not on the Amazon listing page. That's normal.
Track Price DropAs an Amazon Associate we earn from qualifying purchases
Why This Deal Is Worth It
When you are setting up solar panels, the wiring is the last place you want to cut corners. I have learned the hard way that cheap, thin cables lose energy through resistance, essentially throwing your power production away. The SJZ SUN RUN 10 AWG cable stands out because it uses tinned copper, which resists the corrosion that happens when moisture hits outdoor connections. The TUV certification is the real deal here; it means this cable is rated for twenty-five years of extreme temperatures. While generic alternatives get brittle and crack after one season in the sun, this XLPE insulation is built to stay flexible. Spending a little more on quality wiring now prevents the three-hour headache of troubleshooting a dead system next summer. That is six months of school lunches I would rather not spend replacing faulty hardware. This is for the DIY homeowner installing a solar array on a shed, RV, or cabin who is tired of voltage drops. If you are worried about your panels underperforming because your cables are too thin, this is your solution. One thing to know: the 10-gauge wire is thick and stiff. It is excellent for conductivity, but it does not bend around sharp corners easily. Plan your cable path before you start, and use the included ties to secure it so the weight does not pull on your panel connections.
Thomas Brooks
Premium Durability & BIFL Expert
About this item

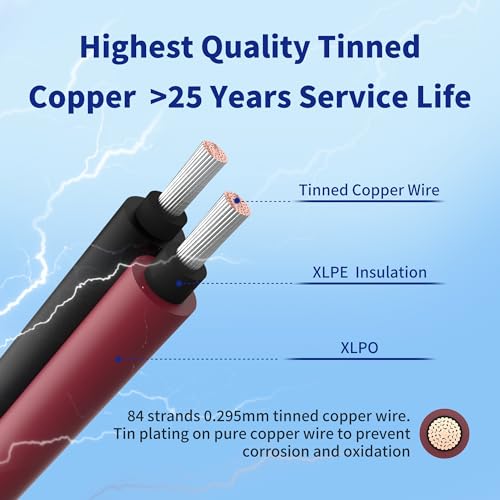

- 𝟏𝟎𝐀𝐖𝐆 𝐓𝐢𝐧𝐧𝐞𝐝 𝐂𝐨𝐩𝐩𝐞𝐫 𝐖𝐢𝐫𝐞:10 AWG tinned copper solar extension cable has excellent conductivity and UV resistance. The dual sheath is made with XLPE insulation, while PPO insulated connectors ensure reliable connections. High-precision, oxygen-free copper maximizes efficiency.SJZ SUN RUN connector is equipped with dust plugs, which can prevent dust and make the connectors more durable.

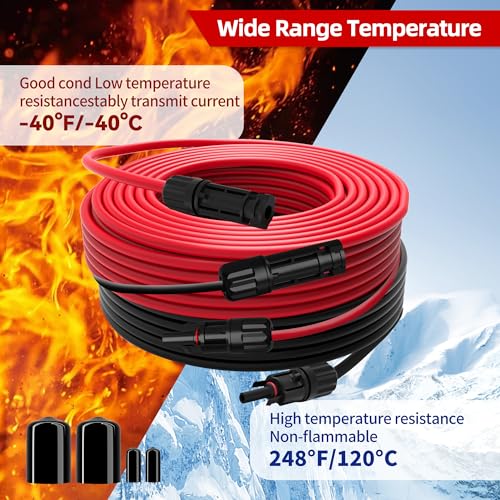

- 𝐓𝐔𝐕 𝐂𝐞𝐫𝐭𝐢𝐟𝐢𝐜𝐚𝐭𝐢𝐨𝐧: SJZ SUN RUN PV wire is TUV certified (EN50618:2014), ensuring it meets strict safety and reliability standards, a long life of 25+ years. It performs well in extreme temperatures from -40°F to 194°F, ensuring long-term, reliable operation for your solar system. Bonus Cable Ties Included: Comes with free cable ties to keep your wiring neat and organised, making installation cleaner, safer, and more professional
- 𝐇𝐢𝐠𝐡 𝐀𝐯𝐚𝐢𝐥𝐚𝐛𝐢𝐥𝐢𝐭𝐲: 10awg solar extension cable test voltage 6500V, rated voltage 1500V DC, rated current 50A, 84 strands 0.285 mm tinned copper wire, conductor resistance: (20°C) ≤ 3.39 Ω/KM.Operating temperature: -40°C to 120°C. The Tinned Copper Hookup Wire is flexible and easy to solder, peel, and cut

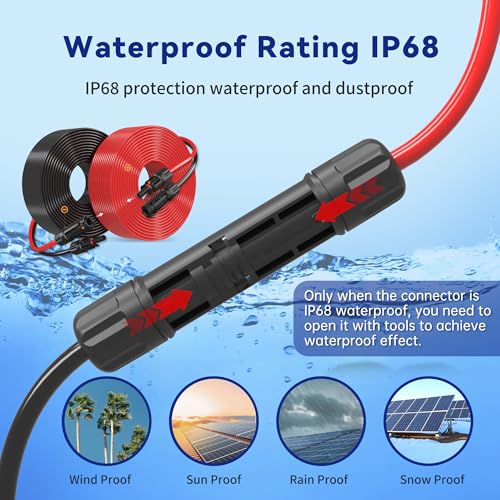

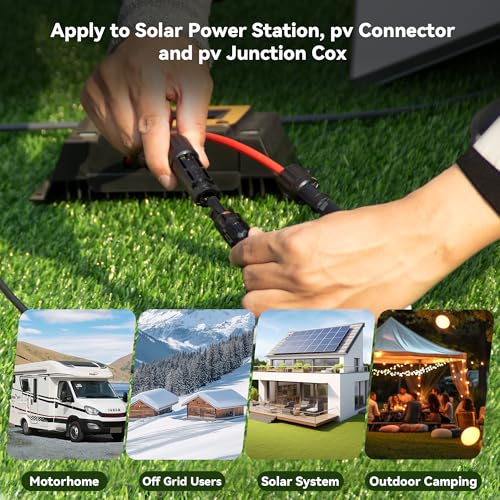

- 𝐈𝐏𝟔𝟖 𝐖𝐚𝐭𝐞𝐫𝐩𝐫𝐨𝐨𝐟: IP68 waterproof connector has been installed on the solar and can be used directly.The solar extension cable has the characteristics of waterproof, moisture-proof, UV and anti-corrosion, designed for a long life of 25+ years and suitable for outdoor applications. It features IP68 waterproof performance, ensuring reliable operation even in harsh environments. The 10 gauge wire is widely used for wiring various low voltage electronic devices, connecting solar panels and inverters on boats, marine vessels, automotive applications, RV, LED, and all DC circuits

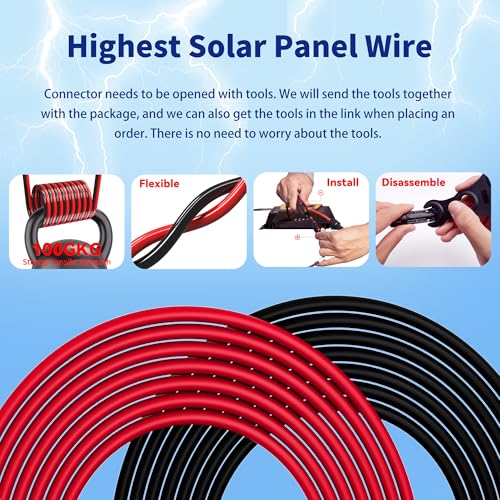

- 𝐖𝐢𝐝𝐞 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧: Bundle includes 10ft red + 10ft black 10 AWG cables (2-pair Multi-Contact 4 connectors included; it has been connected to the cable, and you don't need to operate the link.) – ready for solar arrays, boats, LED systems, and low-voltage electronics. Backed by a satisfaction guarantee, it’s a professional-grade solution for DIY enthusiasts and solar installers alike
Specifications
